Looking for a USA-manufactured tie rod hydraulic cylinder that meets NFPA standards and offers long-term durability? Our industrial-grade tie rod cylinders are ideal for high-pressure hydraulic systems in agriculture, construction, material handling, and OEM machinery. Manufactured using premium carbon steel, honed tubes, and chrome-plated rods, these cylinders are built to withstand tough operating conditions while delivering consistent linear motion control.
Whether you’re sourcing for OEM hydraulic system integration, or upgrading your mobile hydraulic machinery, our cylinders are trusted by professionals across the United States and worldwide.
Whether you’re sourcing for OEM hydraulic system integration, or upgrading your mobile hydraulic machinery, our cylinders are trusted by professionals across the United States and worldwide.

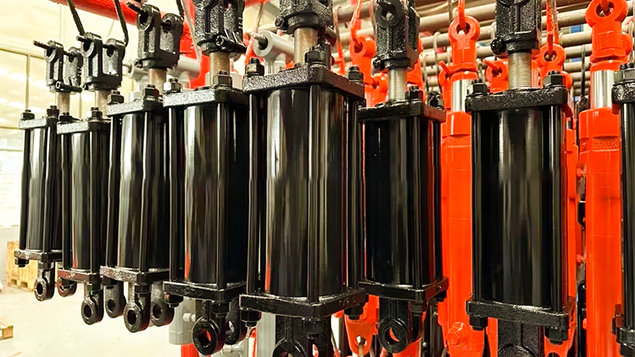

Key Features of Our Tie Rod Hydraulic Cylinders
- Rated for 2500 PSI to 3000 PSI operating pressure
- Built to NFPA & ISO standards for interchangeability
- Honed steel tubes for smooth operation
- Hard chrome-plated piston rods for corrosion resistance
- U-cup and polyurethane seals for leak-free performance
- Custom bore sizes and strokes available on request
- Suitable for double-acting and single-acting operations
Technical Specifications – Tie Rod Hydraulic Cylinder
| Specification | Details |
|---|---|
| Bore Sizes | 2" to 12" (Custom sizes available) |
| Stroke Length | Up to 120″ standard, 12″ typical on |
| Operating Pressure | 2500 PSI (standard model); 3000 PSI (high-pressure model) |
| Rod Diameter | Proportional to bore (e.g., 1.75″ rod for 4″ bore) |
| Retracted Length | Bore + stroke + cushion space (example: 22.25″ for 4″×12″) |
| Seal Type | U-Cup, Nitrile, and Polyurethane |
| Temperature Range | −20 °C to +100 °C standard |
| Port Types | #8 SAE, NPT, BSP Threaded Ports (customizable) |
| Fluid Compatibility | Mineral-based hydraulic oils, synthetic fluids |
| Mounting Options | NFPA-compatible: Clevis, Flange, Trunnion, Cross Tube |
| Rod Finishing | Induction-hardened, chrome-plated for extended service life |
| Material | Carbon steel body with powder-coated finish. |
Industries & Applications
Our hydraulic tie rod cylinders are widely used across a range of U.S. industrial sectors:
Agricultural Equipment
Harvesters, Tractors, Loaders
Construction Machinery
Excavators, Bulldozers, Compact Loaders
Material Handling Systems
Cranes, Scissor Lifts, Pallet Stackers
Automated Manufacturing Lines
Heavy-Duty Press Machines
OEM Hydraulic Assembly Units
Earthmoving and Mining Equipment
Hydraulic Dump Trailers & Lift Systems
Best suited for applications requiring strong axial load handling and high-performance reliability
Our Cylinder Type
High-pressure version for heavy-load applications, ideal for hydraulic presses, dump trailers, and earthmoving machines.
Tie Rod Hydraulic Cylinder - 2500 PSI & 3000 PSI
Why Choose Our Tie Rod Cylinders in the USA?
Serving US-based hydraulic system integrators & OEMs
Built to NFPA mounting dimensions for easy interchange
Fully customizable bore, stroke, ports, and mounts
Fast shipping to all US states
Pressure-tested for zero-leak performance
Bulk supply & white-label manufacturing for OEM clients
Global Reach - Exporting to 20+ Countries
We also offer dropshipping and dealer programs for U.S.-based B2B partners.
What Our Clients Say
Customer Testimonials
We’ve installed over 100 of SEA HydroSystems’ tie rod cylinders in our manufacturing line. Their durability and service support are top-notch. Perfect fit for U.S.-standard equipment.
Looking for a reliable hydraulic cylinder manufacturer catering to USA buyers, OEMs, and industrial suppliers?
FAQ's
Frequently Asked Questions
What is a tie rod hydraulic cylinder used for?
A tie rod hydraulic cylinder is used to generate linear force and motion in hydraulic machinery, typically in agriculture, construction, and manufacturing applications.
Can I use this cylinder with a tractor hydraulic system in the U.S.?
Yes, our cylinders are compatible with most American tractor hydraulic systems and OEM agricultural equipment.
Do you ship to the USA?
Absolutely. We ship bulk orders and individual units to all major U.S. states, with custom packaging available.
What is the difference between welded and tie rod hydraulic cylinders?
Tie rod cylinders are easier to maintain and are typically used in industrial settings, whereas welded cylinders are more compact and common in mobile equipment.
Are your tie rod cylinders NFPA-compliant?
Yes. All our tie rod cylinders conform to NFPA (National Fluid Power Association) standards for seamless integration and replacement.
